CETUV solar panel 150w solar installation in africa

FOB Reference Price:Get Latest Price
US $0.32-0.35 / Watts | 30000 Watt/Watts (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
RESUN
Model Number:
RS-150M
Material:
Monocrystalline Silicon
Size:
1480*669*35mm
Number of Cells:
36
Max. Power:
150W
cell size:
156*156mm
cell arrangement:
4*9
Vmp:
17.46V
Imp:
8.59A
Voc:
21.6v
Isc:
9.65A
net weight:
13.1KG for solar panel 150w
frame:
aluminum
color:
blue or dark blue
packing:
carton box and pallet
SupplyAbility
SupplyAbility:
5000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1.paper carton and wooden pallet
2.all our packaging are of international standard only
Port
Shanghai
Lead Time :
15 days after receiving the deposit



Product Introduction

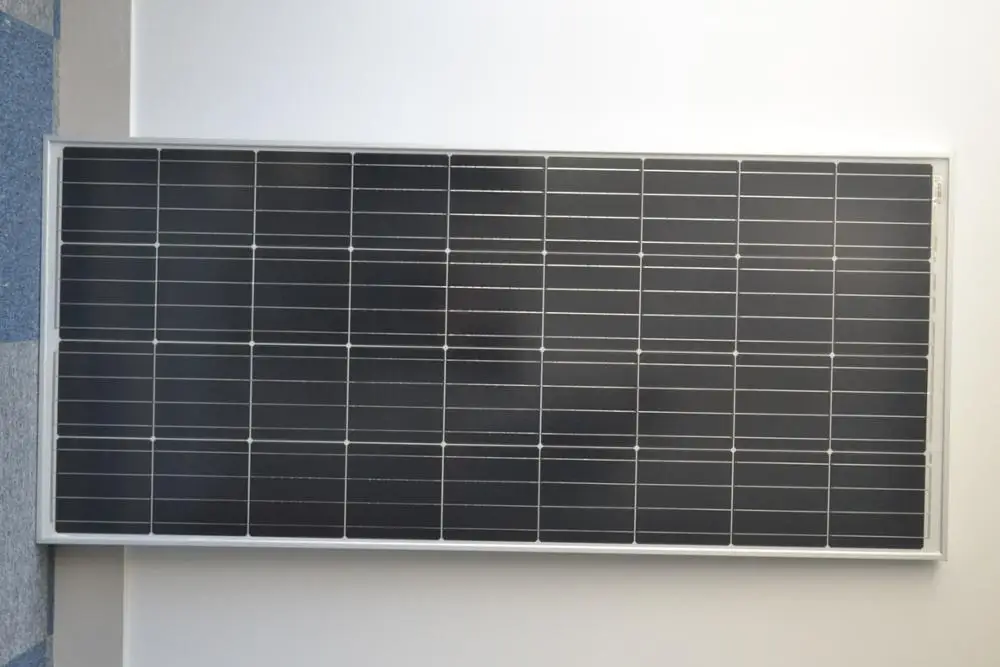

RS6E-150M is a robust solar module with 36 solar cells.These modules can be used for on-grid solar applications.Our meticulous design and production techniques ensure a high-yield,long-term performance for every module produced.Our rigorous quality control and in-house testing facilities guarantee Resun Solar’s modules meet the highest quality standards possible.



Data Sheet



Standard Test ConditionsRS6E
150M
Nominal maximum150W
Optimum Operating Voltage(Vmp)18V
Optimum Operating Current(Imp)8.83A
Open Circuit voltage(Voc)22.1V
Short Circuit Current(lsc)9.16A
Module Efficiency16.28%
Operating Temperature-40℃~+85℃
Maximum System Voltage1000V(IEC)/600V(UL)
Maximum Series Fuse15A
Application ClassificationClass A
Power Tolerance0 ~ + 5W



Details Show







Junction Box:

>> IP65 or IP67 Protection Level

>> 4mm2(IEC)/12AWG(UL) Cable

>> MC4 or MC4 Comparable Connectors

>> Heat dissipation Protection function

>> Client special customed requirement is option



Packaging & Shipping





Project Reference



Sales network covers more than 80 Countries, providing customers with instant after sales service and an efficient supply-chain, our clients can be found throughout the world, such as North America, Europe, Oceania, Eastern Europe, East Asia, Middle Easter and Africa etc. Resun Solar team works closely with our customers to provide them with solutions for all their solar needs.



Our Main Products



Solar Panel

3-350W Mono or Poly Solar Panel

25 year transferrable power output warranty:10year/90%;25year/80%

Solar Battery

From 6V 4.5AH to 12V 200AH

Mid. Order is 100 Pieces/Model

Cheaper Price starts from 3.5usd/pcs

Solar Inverter

From 12V 200W to 96V 8000W
Mid. Order is 100 Pieces/Model
Cheaper Price starts from 10.5usd/pcs

Solar Power System

House or factory use for off-grid and on-grid power system from 1KW-100KW with full range of solar componet, MOQ-one set

Solar Pump System

Highly intelligent module ensures up to 98% conversion efficiency, 3-phase induction motors and other componet of one set.

Solar Lighting System

Used for Garden, Street, Lawn Lamp or solar portable camping light, lighting time last from 2-4 rainy days

About Resun Solar



Resun Solar is founded in 2007, specializes in providing high quality and highly cost-effective solar modules, With its 2 manufacturing factories accredited by ISO9001 & 14001 with 500MW production capacity every year, full ranges of Resun panels are certified by TUV IEC61215, IEC61730, VDE, CEC, EMC, LVD, CE and approved PID free by PI-Berlin lab and insured by American CHUBB Insurance Group.
Resun Solar has lots of experiences on medium and big size Ground projects based on MW and small individual rooftop system based on KW, and Resun Solar has more than 10 years experiences as qualified solar home system supplier for World Bank solar project, in the name of two own brands and thress office and warehouse in DUBAI, TANZANIA and Uganda, the projects distributes in most of Europe Countries, Australia, Canada, South America, Africa, Middle East and Asia etc.
Insisting on its goal to convenient customer and build win-win cooperation with the good relationship with different solar system components partners, Resun Solar has built an industry alliance to supply solar power system integration solutions and solar application products.
