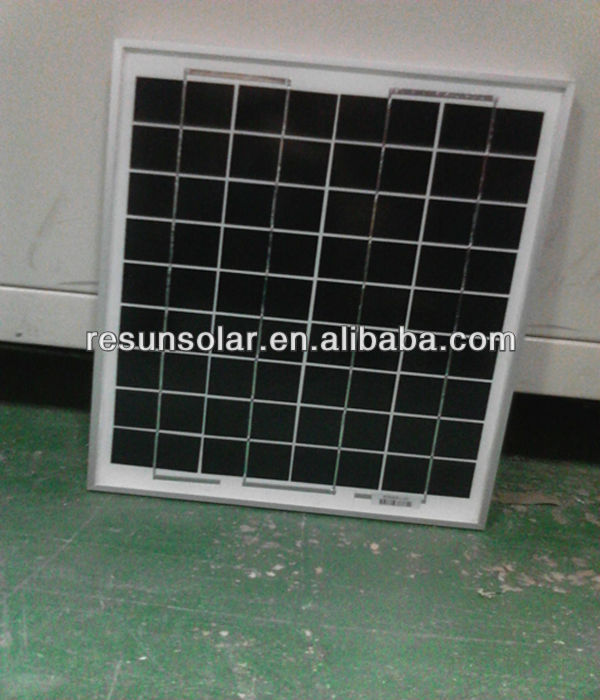

Quick Details

  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: RESUN
  • Model Number: RS-10W M
  • Material: Monocrystalline Silicon
  • Size: 345*285*17mm
  • Number of Cells: 36(4*9)pcs
  • Max. Power: 10W
  • Vmp: 18V
  • Imp: 0.56A
  • Isc: 0.70A
  • Voc: 22V
  • Weight: 1.08
  • Packing: Cartoon or Pallet

Packaging & Delivery

Packaging Details 2 pcs for one cartons and pallets
Delivery Time Within 2 working days after receiving the deposite

Electrical Characteristics

Type Silicon Paramete

RS-10W M

Mono-crystalline silicon

Maximum Power

Watt

10W

Production Tolerance



+3% /-3%

Maximum Power voltage

V

18

Maximum Power current

A

0.56

Open circuit voltage

V

22

Short circuit current

A

0.70

Size of module (wide and high)

 345*285*17mm

Number of cells

36(4*9)pcs

Weight per piece   Kg

1.08

Type of junction box

 PV junction box

Cable type and length,

Connector type

 PV cable, 0.8m

Plug and socket

Maximum system voltage

1000V

Temperature coefficient of Isc

+0.05%/°C

Temperature coefficient of Voc

-0.34%/°C

Temperature coefficient of power

-0.5%/°C

Temperature coefficient of Im

+0.05%/°C

Temperature coefficient of Vm

-0.34%/°C

NOCT (Nominal operating cell temperature)

47°C(+2°C)

CONVERSION EFFICIENCY

Cell CONVERSION EFFICIENCY >16.5

Quality guarantee

2years product warranty and 10 years -10% of power and 25 years -20% of power



Features

1. High cell efficiency with quality silicon materials for long term output stability

2. Strictly quality control ensure the stability and reliability, totally 23 QC procedures

3. High transmittance low iron tempered glass with enhanced stiffness and impact resistance

4. Both Polycrystalline and Monocrystalline

5. Excellent performance in harsh weather

6. Outstanding electrical performance under high temperature and low irradiance



Quality assurance testing

1.Thermal cycling test

2. Thermal shock test

3. Thermal/Freezing and high humidity cycling test

4. Electrical isolation test

5. Hail impact test

6. Mechanical, wind and twist loading test

7. Salt mist test

8. Light and water-exposure test

9. Moist carbon dioxide/sulphur dioxide







 Packing Pictures





Tuv Certificates



Other Information



PAYMENT TERMS

T/T, L/C and Skrill(Moneybookers) are the payment methods we allow at this time.



SHIPPING

Material in stock can be produce (procedure 5-20days) right away after pre-payment confirmation. COSCO Mearsk MSC ship to worldwide for safe shipping, don't worry about package damager or loss. It takes about 15-40 days to worldwide, Please note us your contact details include your phone number for easy contacting from shipping company officer.



IMPORTANT INFORMATION

1. All our solar panels following IEC6125, IEC61730 standard, Have CE, TUV Certifications.

2. The solar cell efficiency is 16%-18.5%. All material certificates by TUV IEC test, meet the solar panel 25 years at outdoor performance



 Thanks for your attention on our company and our goods and looking forward to doing business with you successfully!
