Quick Details

  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: RESUN SOLAR
  • Model Number: RS6S-290P with cheap poly solar panel price
  • Material: Polycrystalline Silicon
  • Size: 1954*992*40 mm with good solar panel price
  • Number of Cells: 6*12 Pieces
  • Max. Power: 290 Watts
  • power tolerance: 0~+5 watt
  • NOCT: 45℃
  • Cell size: 156*156 mm with cheap solar panel price
  • Vmp: 35.9V
  • Imp: 8.08A
  • Isc: 44.4V with poly solar panel price
  • Voc: 8.64A
  • net weight: 23 kg
  • Cell number: 72pcs with cheap poly solar panel price
  • packing: carton box and wooden pallet

Packaging & Delivery

Packaging Details carton box and wooden pallets with poly solar panel price
Delivery Time Within 10-15 working days when receiving advance payment



Product Description

cheap poly solar panel price high quality 290W

Type Silicon Parameters

RS-6S-290W P

Poly crystalline silicon

Maximum Power

Watt

290W

Production Tolerance



+3% /-3%

Maximum Power voltage

V

35.9

Maximum Power current

A

8.08

Open circuit voltage

V

44.4

Short circuit current

A

8.64

Size of module (wide and high)

1954mmx992mmx40mm

Frame (type, material and thickness)

Anodized Alu. Alloy frame,40mm thickness

Number of cells

72pcs

solar panel Weight per piece   Kg

23

Type of junction box

 PV junction box

Cable type and length,

Connector type

 PV cable, 0.8m

Plug and socket

Maximum system voltage

1000V

Temperature coefficient of Isc

+0.05%/°C

Temperature coefficient of Voc

-0.34%/°C

Temperature coefficient of power

-0.5%/°C

Temperature coefficient of Im

+0.05%/°C

Temperature coefficient of Vm

-0.34%/°C

NOCT (Nominal operating cell temperature)

47°C(+2°C)

Impact Resistance Hail Impact Test

227g steel ball fall down from 1m height

CONVERSION EFFICIENCY

Cell CONVERSION EFFICIENCY >16%

Quality guarantee

5 years product warranty and 10 years -10% of power and 25 years -20% of power







Features of product  with cheap poly solar panel price

1. High cell efficiency with quality silicon materials for long term output stability

2. Strictly quality control ensure the stability and reliability, totally 23 QC procedures

3. High transmittance low iron tempered glass with enhanced stiffness and impact resistance

4. Both Polycrystalline and Monocrystalline

5. Excellent performance in harsh weather

6. Outstanding electrical performance under high temperature and low irradiance







Quality assurance testing

1.Thermal cycling test

2. Thermal shock test

3. Thermal/Freezing and high humidity cycling test

4. Electrical isolation test

5. Hail impact test

6. Mechanical, wind and twist loading test

7. Salt mist test

8. Light and water-exposure test

9. Moist carbon dioxide/sulphur dioxide

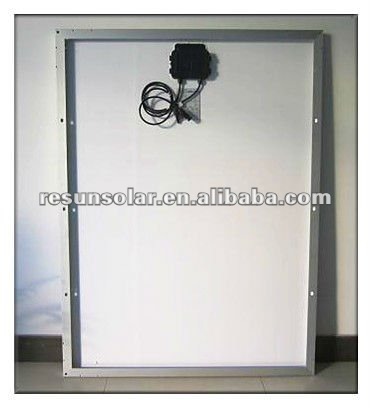

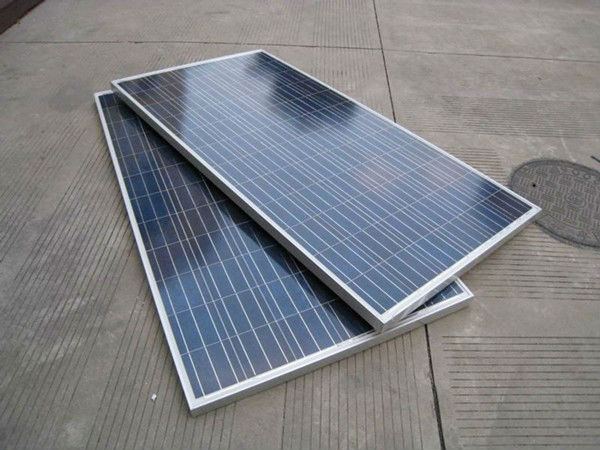

Product Show





Packing with cheap solar panel price













Solar panel for home use



Solar panel for industry use





Exhibition show







Certificates





Other Information



PAYMENT TERMS

T/T, L/C and Skrill(Moneybookers) are the payment methods we allow at this time.



SHIPPING

Material in stock can be produce (procedure 5-20days) right away after pre-payment confirmation. COSCO Mearsk MSC ship to worldwide for safe shipping, don't worry about package damager or loss. It takes about 15-40 days to worldwide, Please note us your contact details include your phone number for easy contacting from shipping company officer.



IMPORTANT INFORMATION

1. All our solar panels following IEC6125, IEC61730 standard, Have CE, TUV Certifications.

2. The solar cell efficiency is 16%-18.5%. All material certificates by TUV IEC test, meet the solar panel 25 years at outdoor performance





Thanks for your attention on our company and products with cheap poly solar panel price!  We are looking forwards to doing business with you successfully in the near future!
