2017 hot sale 320w solar panel manufacture with TUV, IEC

FOB Reference Price:Get Latest Price
US $0.33-0.35 / Wp | 1 Wp for 300w solar panel (Min. Order)
Supply Ability:
5000 Piece/Pieces per Month
Port:
shanghai
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
RESUN
Model Number:
RS-M-320M
Material:
Monocrystalline Silicon
Size:
1956*992*40mm
Number of Cells:
72pcs
Max. Power:
320W
solar panel material:
Monocrystaline Silicon
solar panel size:
1956*992*40mm
solar panel numbers of cell:
72(6*12)pcs
solar panel warranty:
25years
solar panel weight:
22kg
solar panel efficiency:
above 17.5 %
Packaging & Delivery
Packaging Details
paper carton and wooden pallet for solar panel according the international Land and Sea transportation standard.
Delivery Time
Within 7 work days after receipt of the advance

 2017new energy 320w solar panel  solar panel mamufacture directly fom China

Quality and Safety



 1. Resun solar panel meets the highest international standards.



2. High-transmissivity low-iron tempered glass, strong aluminium frame.



3. Using UV-resistant silicon.



4. IS09001/CE/TUV

5.Standard test conditions: AM1.5 100mW/cm2 25oC.

 Warranties



1. 10 years limited product warranty



2. 15 years at 90% of the minimal rated power output



3. 25 years at 80% of the minimal rated power output





Features

1.High cell efficiency with quality silicon materials for long term output stability
2.Strictly quality control ensure the stability and reliability, totally 23 QC procedures
3.High transmittance low iron tempered glass with enhanced stiffness and impact resistance
4.Both Polycrystalline and Monocrystalline

5.

Excellent performance in harsh weather
6.Outstanding electrical performance under high temperature and low irradiance



Date sheet of 300w mono solar module



(Test condition: 1000W/m2, AM1.5, 25°C)



         Type

Silicon

Parameters

RSM320M

Mono crystalline silicon

Maximum Power

Watt

320W

Production Tolerance



+3%

Maximum Power voltage

V

37.4

Maximum Power current

A

8.56

Open circuit voltage

V

44.9

Short circuit current

A

9.41

Size of module (wide and high)

1956mmx992mmx40mm

Frame (type, material and thickness)

Anodized Alu. Alloy frame,40mm thickness

Number of cells

72pcs

Weight per piece   Kg

22kg

Type of junction box

PV junction box

Cable type and length,

Connector type

PV cable, 0.8m

Plug and socket

Maximum system voltage

1000V

Temperature coefficient of Isc

0.065%/°C

Temperature coefficient of Voc

-0.34%/°C

Temperature coefficient of power

-0.43%/°C

Temperature coefficient of Im

+0.05%/°C

Temperature coefficient of Vm

-0.34%/°C

NOCT (Nominal operating cell temperature)

47°C(+2°C)

Insulation

>=100 MΩ

Voltage Standoff

AC2000V, DC3000V

Wind Bearing

60m/s (200kg/sq.m)

Impact Resistance Hail Impact Test

227g steel ball fall down from 1m height

CONVERSION EFFICIENCY

Cell CONVERSION EFFICIENCY >18%





Quality assurance testing



1.Thermal cycling test



2 Thermal shock test



3.Thermal/Freezing and high humidity cycling test



4.Electrical isolation test



5. Hail impact test



6. Mechanical, wind and twist loading test



7. Salt mist test



8. Light and water-exposure test



9. Moist carbon dioxide/sulphur dioxide

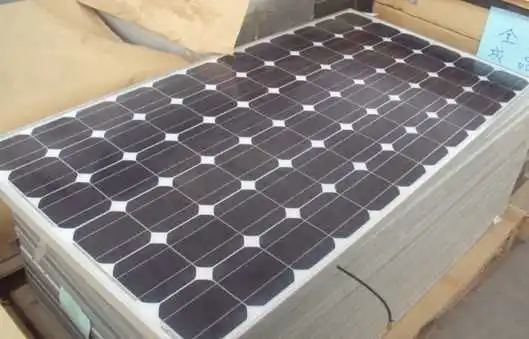

Pictures

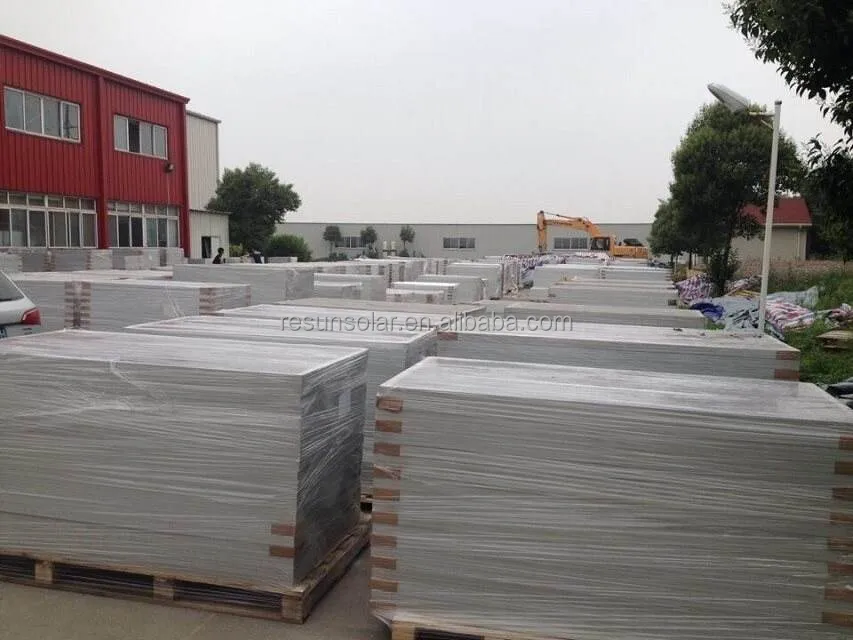

Package

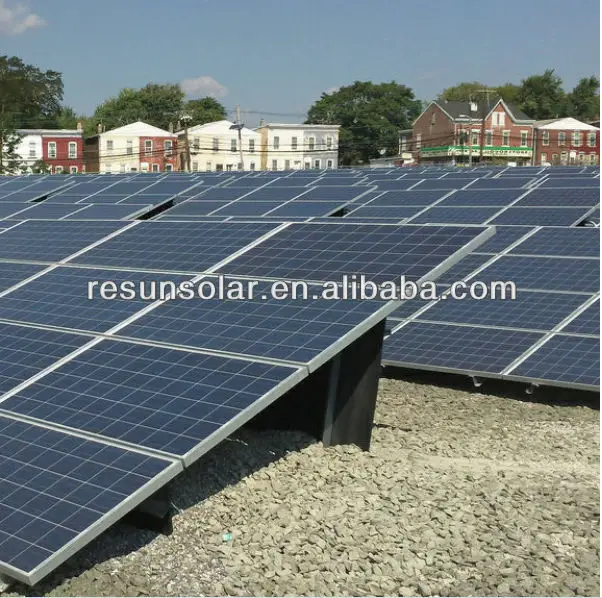

Application











Exhibition



The following are some of our exhibition photos we have been participent.we showed

our products to local  customers and find many reliable clients for long term

partnership.













TUV CE certificates



Our products are with high quality--TUV and CE certificates. Welcome

buy samples from us for test.









Other Information



PAYMENT TERMS

T/T, L/C and Skrill(Moneybookers) are the payment methods we allow at this time.

SHIPPING
Material in stock can be produce (procedure 5-20days) right away after pre-payment confirmation. COSCO Mearsk MSCship to worldwide for safe shipping, don't worry about package damager or loss. It takes about 15-40 days to worldwide, Please note us your contact details include your phone number for easy contacting from shipping company officer.

ABOUT US
We are manufacturers and wholesalers of solar panels and renewable energy products. Our solar business has been established since 2007. Our engineers are experienced in solar and related accessories, if you buy from us you deal with not just a seller; the whole technical team is behind you and your business. We would like to be your best supplier in China.



Feedback

1. Customer satisfaction is completely guaranteed. If for any reason you are unsatisfied

with your order, please contact us FIRST before you leave the feedback.





2. We will do our best to take care of you and if you have any questions please do not

hesitate and feel free to contact us at : 0086 512 6629 2101 or Email us.





Hope we could have opportunity to cooperate with you and establish a



long term good relationship between us.



Thanks for your attention on our company and our products!



 Why choose us?
