Home system solar panel 250W 260W 270W TUV certificate Anti-PID

FOB Reference Price:Get Latest Price
  • 300 - 29999 Watts
    US $0.36
  • >=30000 Watts
    US $0.28
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
RESUN SOLAR
Model Number:
RS6C-P
Material:
Polycrystalline Silicon
Size:
1640*992*40mm
Number of Cells:
60(6*10)pcs
Max. Power:
270W
Solar Panel Series:
RS6C-P
Power Rang:
250W-270W
Cell Type:
Polycrystalline 156*156mm, 4-5 Bus Bar
Cell Arrangement:
60(6x10)
Dimensions:
1640x992x40mm(64.57x39.06x1.57in)
Weight:
19KGS
Tolerance:
0~+5W
Application Classification:
Class A
Certificate:
TUV/IEC61215/IEC61730/CEC/CE/PID/ISO/INMETRO
Quality Warranty:
10 years material and workmanship Warranty
SupplyAbility
SupplyAbility:
60000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
2PCS /Carton box
Port
Shanghai
Lead Time :
after deposit within 15days
Product Introduction

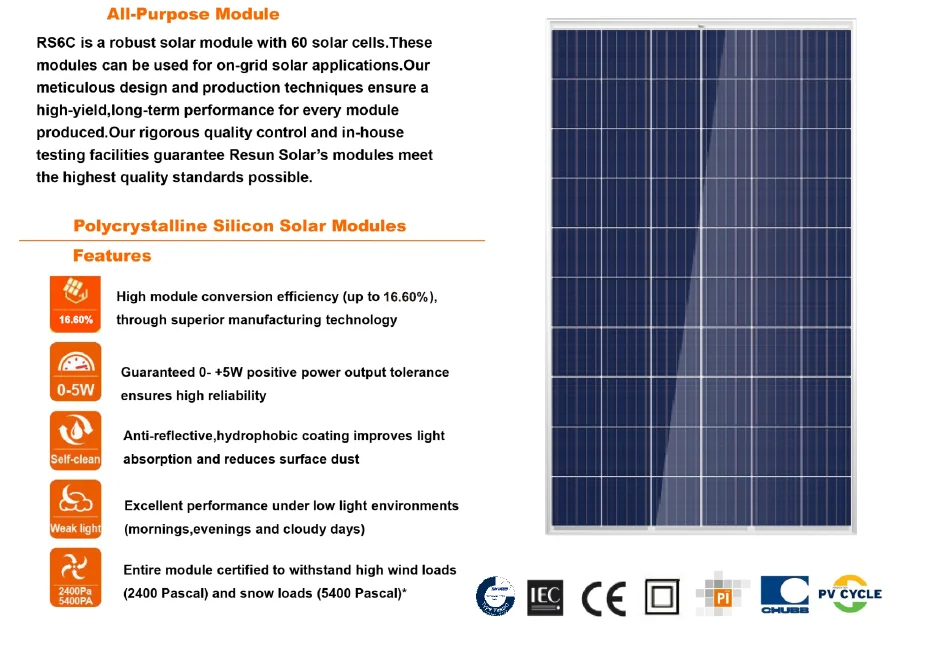

RS6C is a robust solar module with 60 solar cells.These modules can be used for on-grid solar applications.Our meticulous design and production techniques ensure a high-yield,long-term performance for every module produced.Our rigorous uality control and in-house testing facilities guarantee Resun Solar’s modules meet the highest quality standards possible.

Data Sheet
Standard Test Conditions
RS6C
250P
RS6C
255P
RS6C
260P

RS6C
265P

RS6C
270P

Nominal maximum
250W
255W
260W
265W
270W
Optimum Operating Voltage(Vmp)
29.9V
30.1V
30.3V
30.5V
30.7V
Optimum Operating
Current (Imp)
8.36A
8.47A
8.58A
8.69A
8.79A
Open Circuit voltage(Voc)
37.3V
37.5V
37.3V
37.8V
37.9V
Short Circuit Current(lsc)
8.81A
8.88A
8.95A
9.01A
9.76A
Module Efficiency
15.4%
15.70%
16.01%
16.32%
16.60%
Operating Temperature
-40℃~+85℃
Maximum System Voltage
1000V(IEC)/600V(UL)
Maximum Series Fuse
15A
Application Classification
Class A
Power Tolerance
0 ~ + 5W
Details Show

Solar Cell:

 >> High module conversion efficiency (up to 18.09%)

>> Positive power output tolerance ensures high reliability

>> Excellent performance under low light environments (mornings,evenings and cloudy days)

>> PID Free Treatment

Glass :

>> Tempered Glass

>> Self-cleaning function

>> Anti-reflective,hydrophobic coating improves light absorption and reduces surface dust
>> Entire module certified to withstand high wind loads and snow loads

>>10 year material and workmanship warranty.

Frame:

>> Anodized Aluminum Alloy
>> Black Frame is optional as well
>> Seal-lip designlue injuection
>> Serrated-clip design tensile strength
>> Boost Bearing capability and long service life

Junction Box:

>> IP65 or IP67 Protection Level

>> 4mm2(IEC)/12AWG(UL) Cable

>> MC4 or MC4 Comparable Connectors

>> Heat dissipation Protection function

>> Client special customed requirement is option

Pack&Delivery
Our Main Products

3-150W Small-Size Solar Panel

Size and Power support to customed

72 Cells RS5A Series Solar Panel

Power from 190W-210W Mono or Poly

54 Cells RS6D Series Solar Panel

Power from 215W-235W Polycrystalline

60 Cells RS6C Series Solar Panel

Power from 245W-275W Mono or Poly

72 Cells RS6S Series Solar Panel

Power from 300W-325W Mono or Poly

72 Cells RS6T Series Solar Panel

Power from 330W-350W Mono or Poly

About Us

Resun Solar is founded in 2007, specializes in providing high quality and highly cost-effective solar modules, With its 2 manufacturing factories accredited by ISO9001 & 14001 with 500MW production capacity every year, full ranges of Resun panels are certified by TUV IEC61215, IEC61730, VDE, CEC, EMC, LVD, CE and approved PID free by PI-Berlin lab and insured by American CHUBB Insurance Group.
Resun Solar has lots of experiences on medium and big size Ground projects based on MW and small individual rooftop system based on KW, and Resun Solar has more than 10 years experiences as qualified solar home system supplier for World Bank solar project, in the name of two own brands and thress office and warehouse in DUBAI, TANZANIA and Uganda, the projects distributes in most of Europe Countries, Australia, Canada, South America, Africa, Middle East and Asia etc.
Insisting on its goal to convenient customer and build win-win cooperation with the good relationship with different solar system components partners, Resun Solar has built an industry alliance to supply solar power system integration solutions and solar application products.

Sales network covers more than 80 Countries, providing customers with instant after sales service and an efficient supply-chain, our clients can be found throughout the world, such as North America, Europe, Oceania, Eastern Europe, East Asia, Middle Easter and Africa etc. Resun Solar team works closely with our customers to provide them with solutions for all their solar needs.
