Quick Details

  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: RESUN
  • Model Number: RS6C-250P
  • Material: Polycrystalline Silicon
  • Size: 1640x992x40mm
  • Number of Cells: 72pcs
  • Max. Power: 250w
  • material: Polycrystaline Silicon
  • weight: 19kg
  • application: industrial,home
  • certificate: CE,TUV,ISO9001
  • warranty: 10-25years

Packaging & Delivery

Packaging Details paper cartons and wooden pallet with foam filling for 250w solar panel
Delivery Time within 10-15 working days for portable solar system

              best design solar panel 250w solar panel pv module



Product Description



Quality and Safety

1. Resun solar panel meets the highest international standards.

2. High-transmissivity low-iron tempered glass, strong aluminium frame.

3. Using UV-resistant silicon.

4. IS09001/CE/TUV

5.Standard test conditions: AM1.5 100mW/cm2 25oC.

 Warranties

1.      10 years limited product warranty

2.    15 years at 90% of the minimal rated power output

3.    25 years at 80% of the minimal rated power output

  Features

1.

High cell efficiency with quality silicon materials for long term output stability

2.

Strictly quality control ensure the stability and reliability, totally 23 QC procedures

3.

High transmittance low iron tempered glass with enhanced stiffness and impact resistance

4.

Both Polycrystalline and Monocrystalline

5.

Excellent performance in harsh weather

6.

Outstanding electrical performance under high temperature and low irradiance



250w poly  solar panels
Specifications

  Nominal Maximum Power(Pmax)

  250W

  Optimum operating voltage (Vmp)   30.1V
  Optimum operating current (Imp)   8.30A
  Open-circuit voltage (Voc)  37.2V
  Short-circuit current (Isc)  8.87A
  Power tolerance  0—+5W
  Maximum system voltage  1000V(IEC)/600V(UL)
  Maximum Serises Fuse Rating  15A
  NOCT  45 °c
  Temperature Coefficient  PMAX  -0.43%/ °c
  Temperature Coefficient  Voc -0.34%/ °c

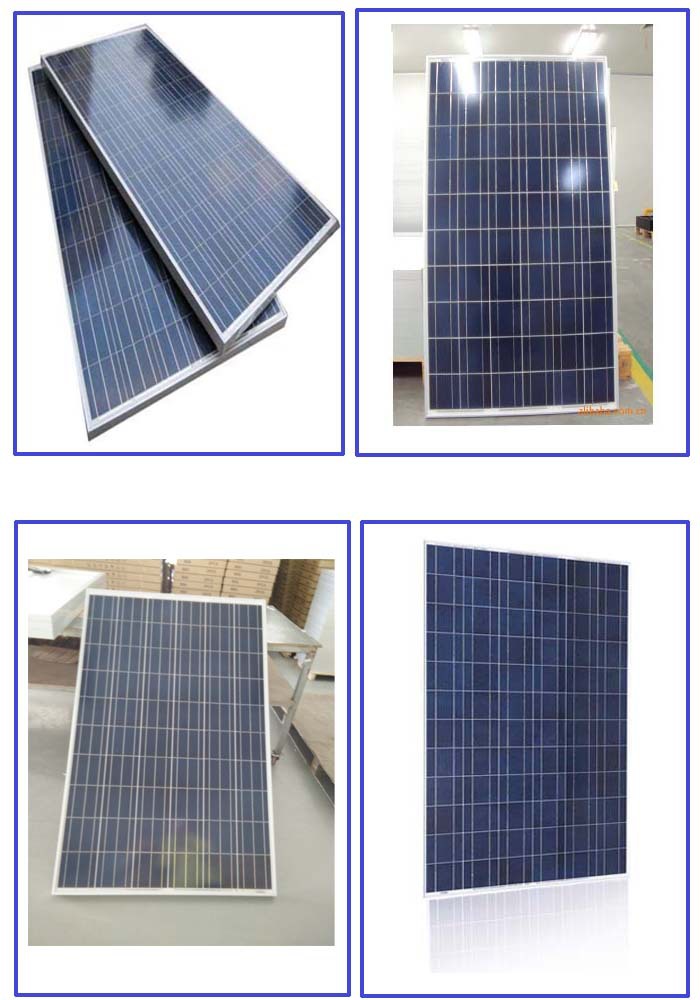

 Pictuer Show

 Package Show

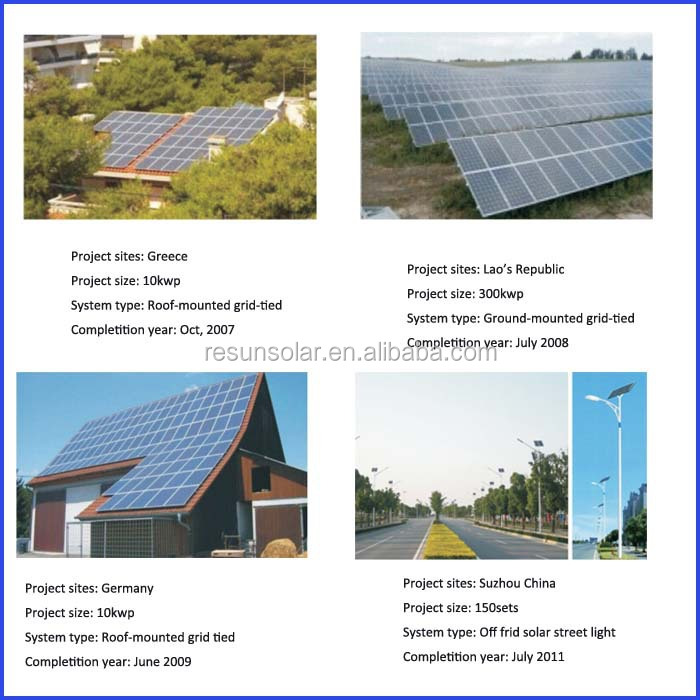

 Application







 Exbihition

certificates

Other Information



PAYMENT TERMS

T/T, L/C and Skrill(Moneybookers) are the payment methods we allow at this time.



SHIPPING

Material in stock can be produce (procedure 5-20days) right away after pre-payment confirmation. COSCO Mearsk MSC ship to worldwide for safe shipping, don't worry about package damager or loss. It takes about 15-40 days to worldwide, Please note us your contact details include your phone number for easy contacting from shipping company officer.



IMPORTANT INFORMATION

1. All our solar panels following IEC6125, IEC61730 standard, Have CE, TUV Certifications.

2. The solar cell efficiency is 16%-18.5%. All material certificates by TUV IEC test, meet the solar panel 25 years at outdoor performance



Feedback

1. Customer satisfaction is completely guaranteed. If for any reason you are unsatisfied with your order, please contact us FIRST before you leave the feedback.

2. We will do our best to take care of you and if you have any questions please do not hesitate and feel free to contact us at : 0086 512 6629 2101 or Email  us.





 Thanks for your attention on our Mono crystaline folding solar panels!



Looking forward to cooperate with you and establish a long term partnership between us!
