Quick Details

  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: RESUN
  • Model Number: RS-6S-320W
  • Material: Polycrystalline Silicon
  • Size: 1956*992*50mm
  • Number of Cells: 72pcs
  • Max. Power: 300w
  • solar panel material: Polycrystaline Silicon
  • soalr panel size: 1954*992*40mm
  • solar panel numbers of cells: 72(6*12)pcs
  • solar panel max.power: 320w
  • solar panel vmp: 36.1V
  • soalr panel Imp: 8.30A
  • soalr panel Isc: 8.87A
  • solar panel voc: 44.6V
  • solar panel cell: 156*156mm
  • solar panel weight: 23kg

Packaging & Delivery

Packaging Details Package form:paper cartons and wooden pallet with foam filling .
Delivery Time Within 10-15 work days after receipt of the advance

high efficiency 320w solar panel with CE TUV certificate

Product Description



 Description

RS6S is robust solar module with 72 solar cells .These modules can be used for on grid solar applications.Our meticulous design and production techniques ensure a high yield,long term performance for every module prodvuced.our rigorous quality control and in-house testing facilities guarantee Resun solar 's modules meet the highest quality standarda possible.

Features

l High cell efficiency with quality silicon materials for long term output stability

l Strictly quality control ensure the stability and reliability, totally 23 QC procedures

l High transmittance low iron tempered glass with enhanced stiffness and impact resistance

lBoth Polycrystalline and Monocrystalline

l Excellent performance in harsh weather

lOutstanding electrical performance under high temperature and low irradiance

Data sheet



Type Silicon Parameters

RS-300W-P

Poly-crystalline silicon

Maximum Power

W

300W

Production Tolerance



+3% /-3%

Maximum Power voltage

V

36.1

Maximum Power current

A

8.30

Open circuit voltage

V

44.6

Short circuit current

A

8.87

Dimension

MM

1956*992*40

Weight per piece

KG

22

Cell arrangement



72pcs(6*12)

Frame



Anodized-Alu.-Alloy-frame,35mm-thickness

Type of junction box



PV junction box

Cable



PV cable, 0.8m Plug and socket

Maximum system voltage



DC1000V

Temperature coefficient (lsc)



+0.05%/°C

Temperature coefficient (voc)



-0.34%/°C

Temperature coefficient (Pmax)



-0.5%/°C

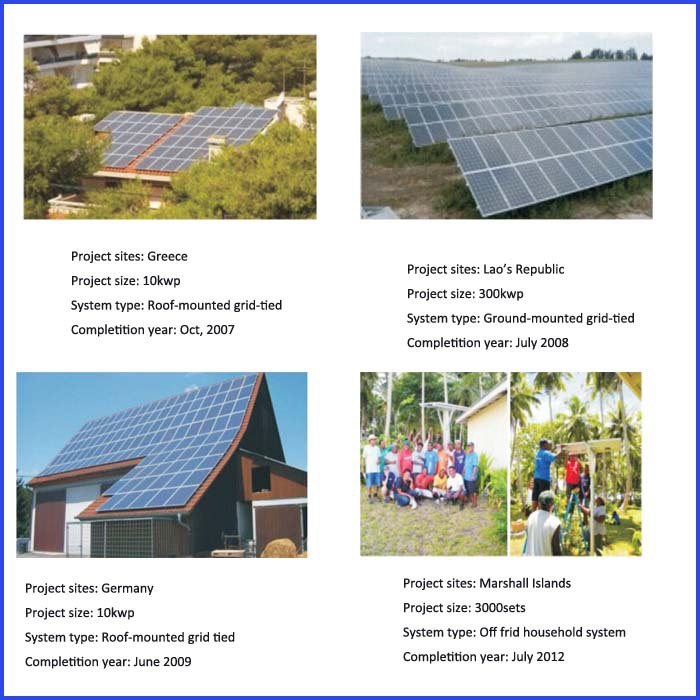

Solar Panel For  project





Exhibition



Certificates

 Other Information



PAYMENT TERMS

T/T, L/C and Skrill(Moneybookers) are the payment methods we allow at this time.

SHIPPING
Material in stock can be produce (procedure 5-20days) right away after pre-payment confirmation. COSCO Mearsk MSCship to worldwide for safe shipping, don't worry about package damager or loss. It takes about 15-40 days to worldwide, Please note us your contact details include your phone number for easy contacting from shipping company officer.

ABOUT US
We are manufacturers and wholesalers of solar panels and renewable energy products. Our solar business has been established since 2007. Our engineers are experienced in solar and related accessories, if you buy from us you deal with not just a seller; the whole technical team is behind you and your business. We would like to be your best supplier in China.
