Best quality and high efficiency mono solar panel prices of load cell

FOB Reference Price:Get Latest Price
US $0.55-0.6 / Watt | 10 Piece/Pieces prices of load cell (Min. Order)
Supply Ability:
4000 Piece/Pieces per Month prices of load cell
Port:
Shanghai
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
RESUN
Model Number:
RS-250W-M
Type:
panel solar
Nominal Maximum Power:
250W
Optimum Operating Voltage:
31.8V
Optimum Operating Current:
7.86A
Open Circuit Voltage:
37.2V
Short Circuit Current:
8.52A
Module Efficiency:
15.63%
Cell Type:
Mono crystalline 156*156
Dimensions:
1640*992*50mm
Weight:
19kg
prices of load cell:
Hot sales 250watt solar panel prices of load cell
Packaging & Delivery
Packaging Details
Outside tray or wooden box, inside plastic film
Delivery Time
Within 2 weeks after received payment

Specifications

prices of load cell
1.Module efficiency: 15.63%
2.Dimensions:1640*992*40mm
3.Green product, Energy Saving and CE/TU.







Product Description



 prices of load cell

Optimum Operating Voltage: 31.8V

Optimum Operating Current: 7.86A

Open Circuit Voltage: 37.2V

Short Circuit Current: 8.52A

Module Efficiency: 15.63%



 prices of load cell

We can produce the solar panel from 2W~305W according customer’s size and requirements.

1)Mono crystalline or poly crystalline for choice.

2)Power range: from 2WP to 305WP, voltage 9V/12V/18V/36V.

3)10 year warranty, 25 year 70%~80% of peak power.

4)Standard test condition: AM1.5 100mW/cm2 25°C

5)Tolerance: +/-5%, solar cell’s efficiency up to above 16%.

6)Certification: CE, TUV, ISO9001:2008



Main parameters

Electrical Data
Material: mono crystalline silicon
Nominal Maximum Power: 250W
Optimum Operating Voltage: 31.8V
Optimum Operating Current: 7.86A
Open Circuit Voltage: 37.2V
Short Circuit Current: 8.52A
Module Efficiency: 15.63%
Operating Temperature: -40℃~+85℃
Maximum System Voltage: 1000V(IEC)/600V(UL)
Maximum Series Fuse Rating: 10A
Application Classification: Class A
Power Tolerance: 0~+5W
Mechanical Data
Cell Type: mono crystalline 156*156
Cell arrangement: 60(6*10)
Dimensions: 1640*992*50mm
Weight: 19kg
Front Cover: 3.2mm tempered glass
Frame Material: Anodized aluminum alloy
J-box: IP65 or IP67, 3diodes
Cable: 4mm2(IEC)/12AWG(UL), 1000mm
Connectors: MC4 or MC4 Comparable
Standard Packing(Modules per pallet): 24pcs
Module pieces per container(20’GP container): 300pcs





Detailed Images

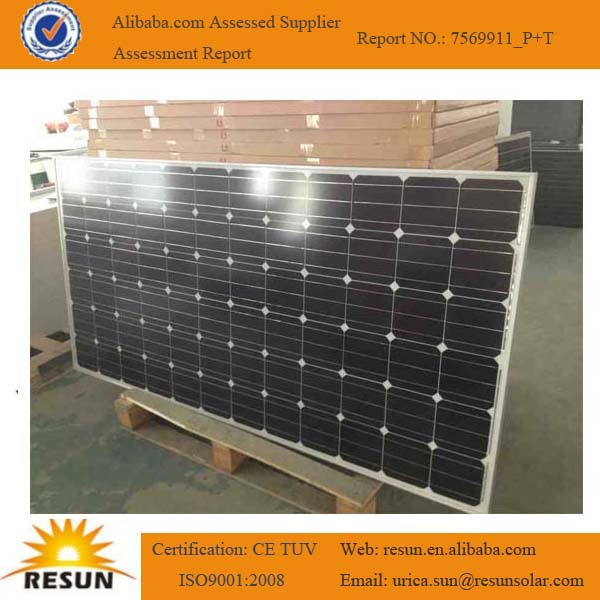

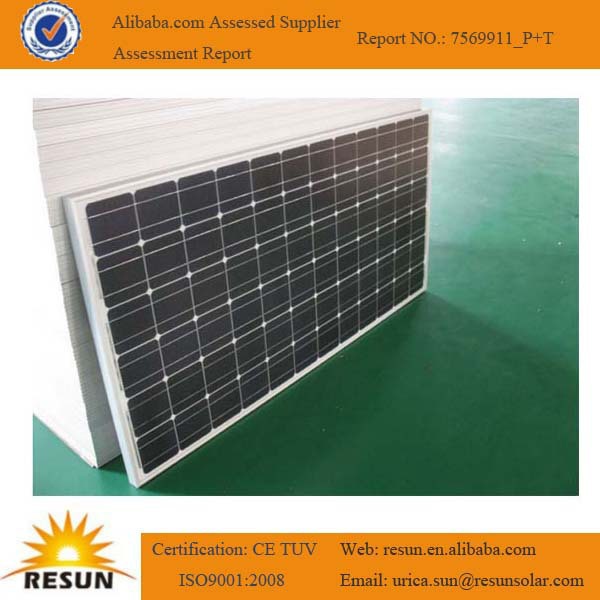

 Pictures  show

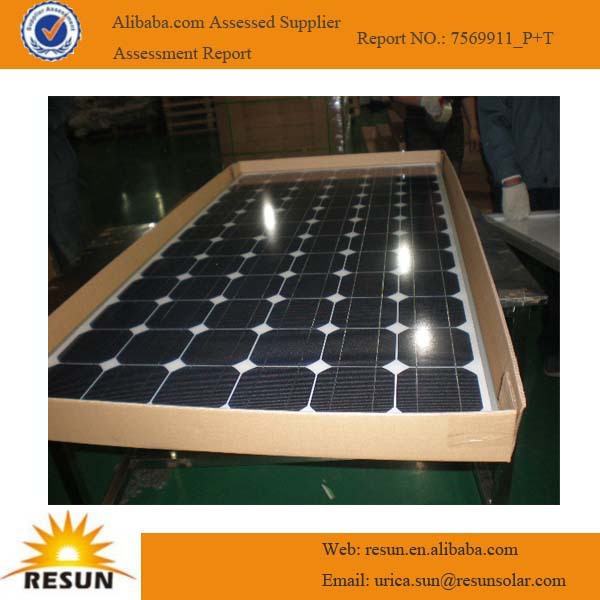

Production flow









Packaging & Shipping

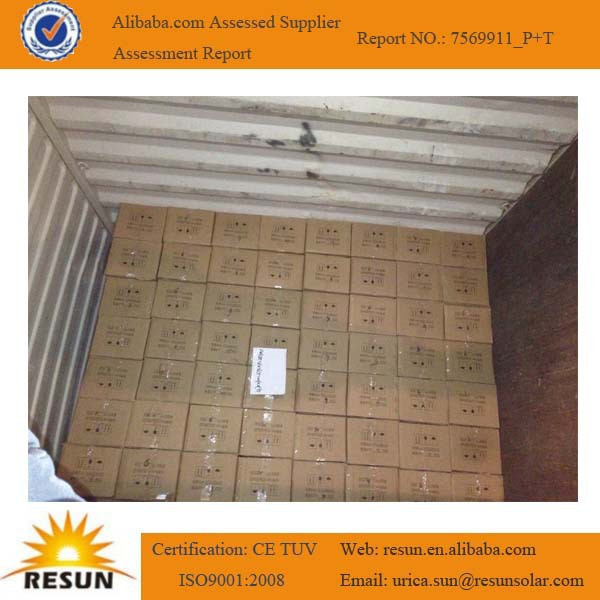

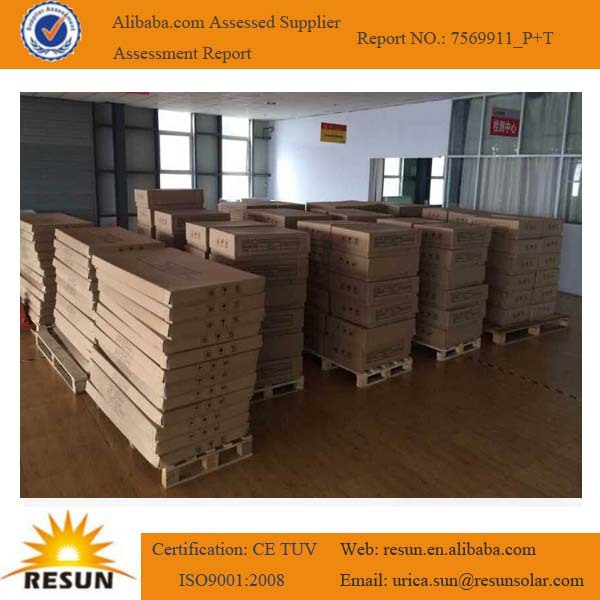

Packing and delivery









Certifications

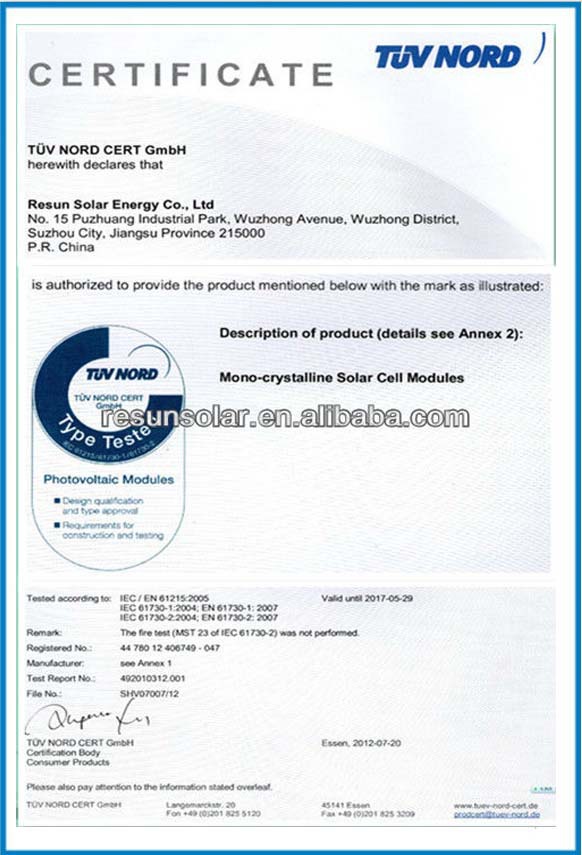

Certification



Our exhibition photos





Our Services



Solar panel other information:

PAYMENT TERMS

T/T, L/C and Skrill(Moneybookers) are the payment methods we allow at this time.



SHIPPING

Material in stock can be produce (procedure 5-20days) right away after pre-payment confirmation. COSCO Mearsk MSC ship to worldwide for safe shipping, don't worry about package damager or loss. It takes about 15-40 days to worldwide, Please note us your contact details include your phone number for easy contacting from shipping company officer.



ABOUT US

We are manufacturers and wholesalers of solar panels and renewable energy products. Our solar business has been established since 2007. Our engineers are experienced in solar and related accessories, if you buy from us you deal with not just a seller; the whole technical team is behind you and your business. We would like to be your best supplier in China.



IMPORTANT INFORMATION

1. All our solar panels following IEC6125, IEC61730 standard, Have CE, TUV Certifications.

2. The solar cell efficiency is 16%-18.5%. All material certificates by TUV IEC test, meet the solar panel 25 years at outdoor performance.
