PV polycrystallin 300watt panel with solar panel frame in china

FOB Reference Price:Get Latest Price
US $0.55-0.65 / Watts | 20 Piece/Pieces solar panel frame (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Jiangsu, China (Mainland)
Brand Name:
RESUN
Model Number:
RS-300W-P
Material:
Polycrystalline Silicon
Size:
1956*992*40mm
Number of Cells:
72
Max. Power:
300
Solar Panel cell:
156*156
Solar Panel number of cell:
72pcs
Weight:
22kg
Maximum system voltage:
1000V(IEC)/600V(UL)
Solar Panel efficiency:
above 16%
Solar Panel colour:
blue, dark bule
solar panel frame:
2014 solar panel with solar panel frame
Supply Ability
Supply Ability:
8000 Piece/Pieces per Month solar panel frame
Packaging & Delivery
Packaging Details
paper cartons and wooden pallet with foam filling for solar panel
Port
Shanghai
Lead Time :
About 2 weeks after getting advanced payment

Specifications

solar panel frame
1)3W-310W customized
2)CE TUV ISO9001:2008 approved
3)10 years warranty and 25 years life span

solar panel frame

1) 2W -310W customized service.
2) CE TUV ISO9001:2008 approved
3) 10 years warranty& 25 years life span



solar panel frame

We can produce the solar panel from 2W~305W according customer’s size and requirements.

1)Mono crystalline or poly crystalline for choice.

2)Power range: from 3WP to 305WP, voltage 9V/12V/18V/36V.

3)10 year warranty, 25 year 70%~80% of peak power.

4)Standard test condition: AM1.5 100mW/cm2 25°C

5)Tolerance: +/-5%, solar cell’s efficiency up to above 16%.

6)Certification: CE, TUV, ISO9001:2008



Main parameters

Type

Silicon

Parameters

              RS-300W-P





            Poly-crystalline silicon
Maximum PowerWatt                    300W
Production Tolerance                    +3% /-3%
Maximum Power voltage  V                    36.2
Maximum Power current  A                    8.30
Open circuit voltage  V                    44.6
Short circuit current  A                    8.87
Size of module (wide and high)MM               1960*992*50
Weight per piece   KG                    23
Number of cells                  72pcs(6*12)
Frame (type, material and thickness)   Anodized Alu. Alloy frame,35mm thickness
Type of junction box   PV junction box

Cable type and length,

Connector type



  PV cable, 0.8m Plug and socket

Maximum system voltage   DC1000V
Temperature coefficient of Isc   +0.05%/°C
Temperature coefficient of Voc   -0.34%/°C
Temperature coefficient of power   -0.5%/°C
Temperature coefficient of Im   +0.05%/°C
Temperature coefficient of Vm   -0.34%/°C
NOCT (Nominal operating cell temperature)   47°C(+2°C)
Insulation   >=100 MΩ
Voltage Standoff   AC2000V, DC3000V
Wind Bearing   60m/s (200kg/sq.m)
Impact Resistance Hail Impact Test 227g steel ball fall down from 1m height
CONVERSION EFFICIENCY Cell CONVERSION EFFICIENCY >16.20%
Quality guarantee 10years product warranty and 10 years -10% of power and 25 years -20% of power

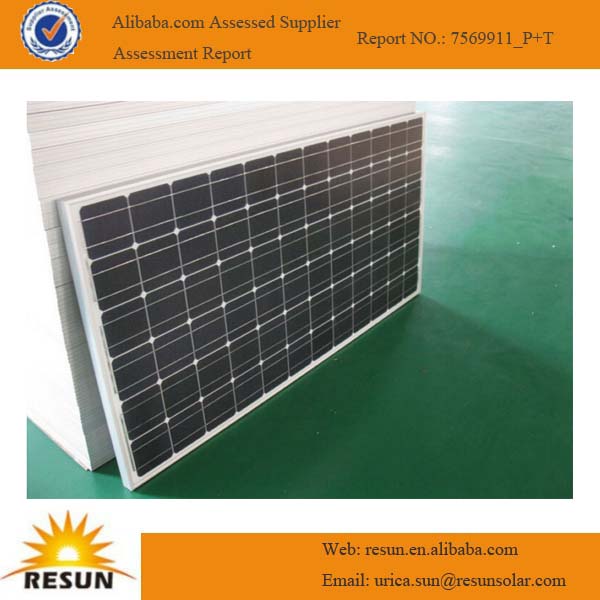

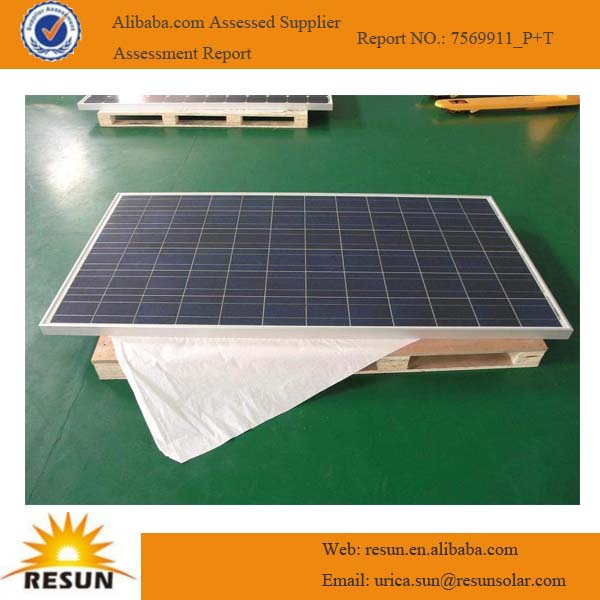

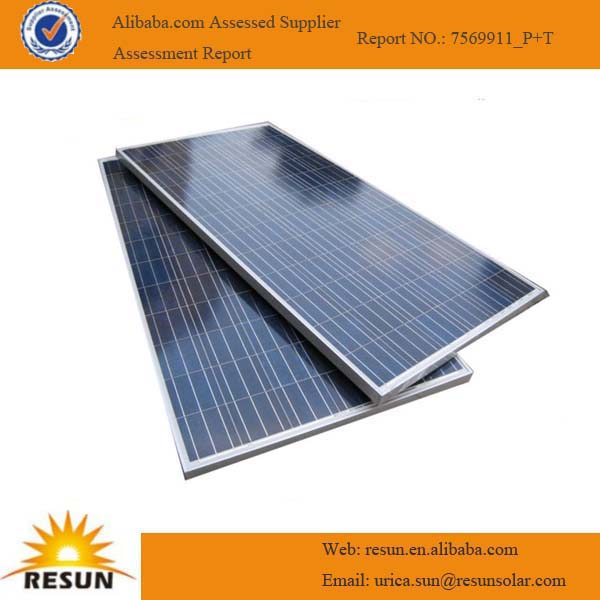

Pictures  show134.jpg209.jpg224.jpg



Production flow


Packing details

packing 04.jpg

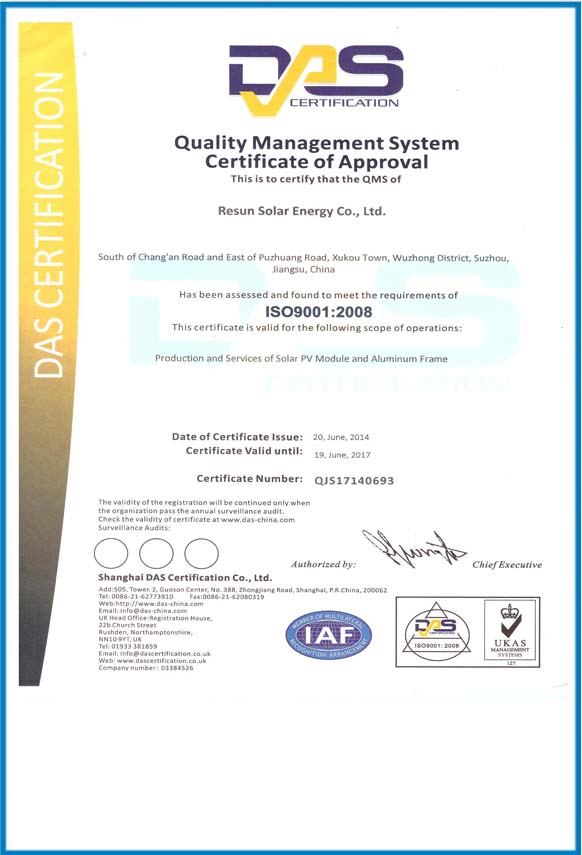

Certification

 certification 03.jpg



Our exhibition photos

exhibition 01.jpg





Solar panel other information:

PAYMENT TERMS

T/T, L/C and Skrill(Moneybookers) are the payment methods we allow at this time.



SHIPPING

Material in stock can be produce (procedure 5-20days) right away after pre-payment confirmation. COSCO Mearsk MSC ship to worldwide for safe shipping, don't worry about package damager or loss. It takes about 15-40 days to worldwide, Please note us your contact details include your phone number for easy contacting from shipping company officer.



ABOUT US

We are manufacturers and wholesalers of solar panels and renewable energy products. Our solar business has been established since 2007. Our engineers are experienced in solar and related accessories, if you buy from us you deal with not just a seller; the whole technical team is behind you and your business. We would like to be your best supplier in China.



IMPORTANT INFORMATION

1. All our solar panels following IEC6125, IEC61730 standard, Have CE, TUV Certifications.

2. The solar cell efficiency is 16%-18.5%. All material certificates by TUV IEC test, meet the solar panel 25 years at outdoor performance.
