Quick Details

  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: RESUN
  • Model Number: RS100W
  • Material: Polycrystalline Silicon, Polycrystalline Silicon
  • Size: 1188*669*35mm, 1188*669*35mm
  • Number of Cells: 36 pcs
  • Max. Power: 100W
  • Vmp: 16.9V
  • Imp: 5.91A
  • Isc: 21.2V
  • Voc: 6.33A
  • Weight: 9.5kg for photovoltaic module
  • Cell: 36pcs
  • weight: 9.5kg

Packaging & Delivery

Packaging Details Cartons and Pallets with foam filling
Delivery Time Within 10-15 working days after receiving deposit

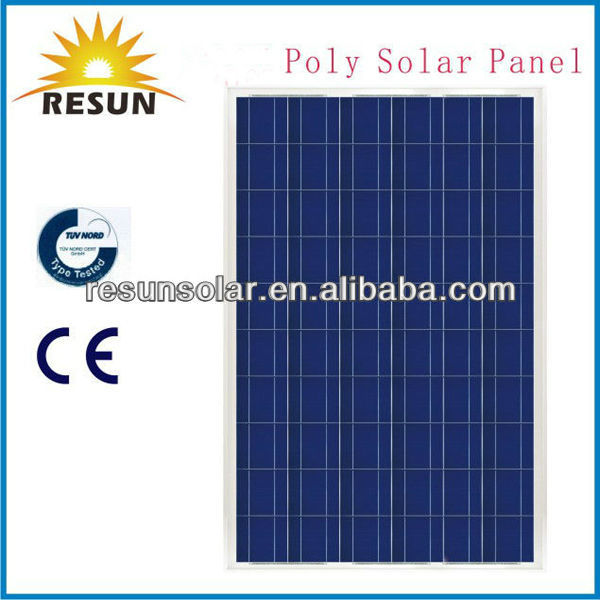

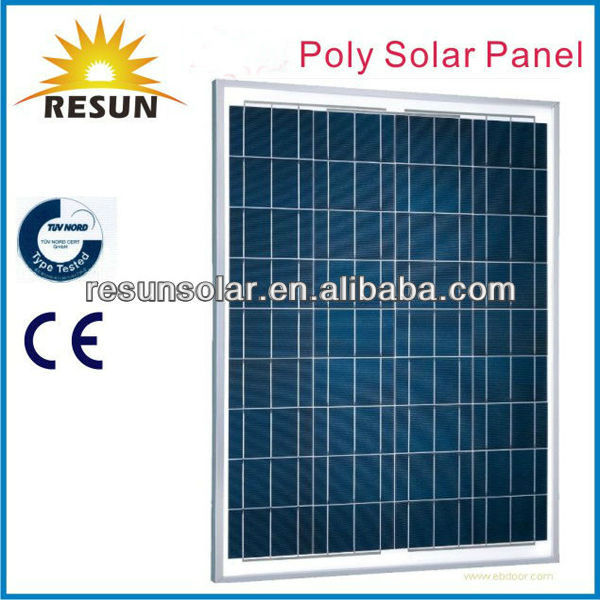

easy installed hot sale 100w poly photovoltaic module



Type Silicon Parameters

RS100W P

Poly-crystalline silicon

Maximum Power

Watt

100W

Production Tolerance



+3% /-3%

Maximum Power voltage

V

16.9

Maximum Power current

A

5.91

Open circuit voltage

V

21.2

Short circuit current

A

6.33

Size of module (wide and high)

1188mmx669mmx35mm

Frame (type, material and thickness)

Anodized Alu. Alloy frame,35mm thickness

Number of cells

36pcs

Weight per piece  ( Kg)

9.5

Type of junction box

 PV junction box

Cable type and length,

Connector type

 PV cable, 0.8m

Plug and socket

Maximum system voltage

750V

Temperature coefficient of Isc

+0.05%/°C

Temperature coefficient of Voc

-0.34%/°C

Temperature coefficient of power

-0.5%/°C

Temperature coefficient of Im

+0.05%/°C

Temperature coefficient of Vm

-0.34%/°C

NOCT (Nominal operating cell temperature)

47°C(+2°C)

Insulation

>=100 MΩ

Wind Bearing

60m/s (200kg/sq.m)

Impact Resistance Hail Impact Test

227g steel ball fall down from 1m height

CONVERSION EFFICIENCY

Cell CONVERSION EFFICIENCY >14%

Quality guarantee

5 years product warranty and 10 years -10% of power and 25 years -20% of power







Features

1. High cell efficiency with quality silicon materials for long term output stability

2. Strictly quality control ensure the stability and reliability, totally 23 QC procedures

3. High transmittance low iron tempered glass with enhanced stiffness and impact resistance

4. Both Polycrystalline and Monocrystalline

5. Excellent performance in harsh weather

6. Outstanding electrical performance under high temperature and low irradiance





Quality assurance testing

1.Thermal cycling test

2. Thermal shock test

3. Thermal/Freezing and high humidity cycling test

4. Electrical isolation test

5. Hail impact test

6. Mechanical, wind and twist loading test

7. Salt mist test

8. Light and water-exposure test

9. Moist carbon dioxide/sulphur dioxide





Other products of photovoltaic module

Packing Pictures

Certificates

Other Information



PAYMENT TERMS

T/T, L/C and Skrill(Moneybookers) are the payment methods we allow at this time.



SHIPPING

Material in stock can be produce (procedure 5-20days) right away after pre-payment confirmation. COSCO Mearsk MSC ship to worldwide for safe shipping, don't worry about package damager or loss. It takes about 15-40 days to worldwide, Please note us your contact details include your phone number for easy contacting from shipping company officer.



IMPORTANT INFORMATION

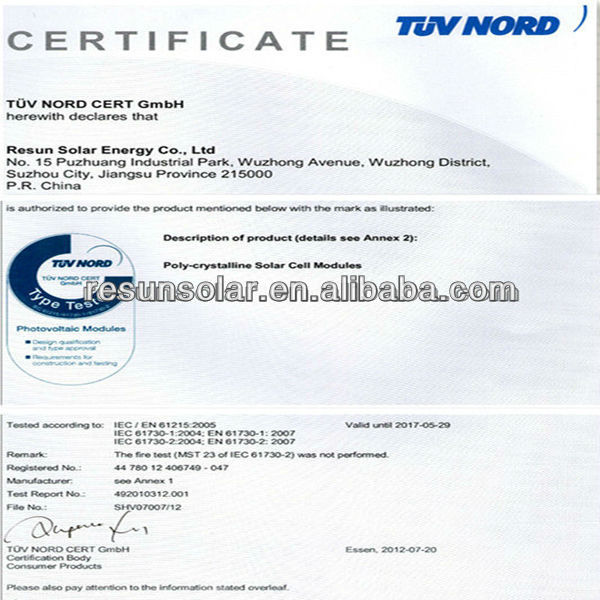

1. All our solar panels following IEC6125, IEC61730 standard, Have CE, TUV Certifications.

2. The solar cell efficiency is 16%-18.5%. All material certificates by TUV IEC test, meet the solar panel 25 years at outdoor performance



Thanks for your attention on our company and our photovoltaic module!

We hope to cooperate with you and build a long time business relationship between us.
