Quick Details

  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: RESUN
  • Model Number: RS-5W-P
  • Material: Polycrystalline Silicon
  • Size: different types
  • Number of Cells: 36
  • Max. Power: 100
  • Solar Panel cell: 156*156
  • Solar Panel number of cell: 18pcs
  • Weight: 0.67
  • Maximum system voltage: 1000V(IEC)/600V(UL)
  • Solar Panel efficiency: above 17.5%
  • Solar Panel colour: blue, dark bule
  • small solar panels for toys: 2014 China small solar panels for toys

Packaging & Delivery

Packaging Details paper cartons and wooden pallet with foam filling for solar panel
Delivery Time within 10-15 days for solar panel

Specifications

small solar panels for toys
1.High module conversion efficency(up to 15.2%)
2.Nominal maximum power(Pmax):100
3.CE, ISO9001.

 small solar panels for toys

1.High module conversion efficency(up to 15.2%)
2.Nominal maximum power(Pmax): 305W
3.Certification: CE, TUV.



 small solar panels for toys

1.STC: lrradiance 1000W/m2,Module temperature 25,AM=1.5

2.Nominal 24V DC standard output.

3.High efficiency, good quality.

4.High transmission tempered glass.

5.TPT imported from Krempel, Germany

6.Rugged design to withstands high wind pressure and snow load, easy installation.

7.Aesthetic appearance.

8.Design to meet unique demand of customers.

9.25 years module output warranty.

10.Built-in diode prevents reverse charging.



Main parameters

STCRS6S-280PRS6S-285PRS6S-290PRS6S-295PRS6S-300PRS6S-305P
       Electric Data
Nominal maximum power(Pmax)280W285W290W295W300W305W
Optimum operating voltage (Vmp)     35.6V35.8V35.9V36.0V36.1V37.7V
Optimum operating current (Imp)     7.86A7.96A8.08A8.19A8.30A8.10A
Open-circuit voltage (Voc )44.2A44.3A44.4A44.5A44.6A45.3A
Short-circuit current (Isc )     8.42A8.53A8.64A8.76A8.87A8.55A
Power tolerance0~+5W
Maximum system voltage1000V(IEC)/600V(UL)
Maximum system fuse rating15A
NOTC45
Temperature coefficient Pmax       -0.43%
Temperature coefficient Voc-0.34%
Temperature coefficient Ist0.065%
                         Mechanical Data
Cell typePoly-crystalline 156*156mm,2 or 3 Busbars
Cell Arrangement72(6*12)
Dimensions1954*992*40mm(76.93*39.05*1.57in)
Weight22kg(48.5lbs)

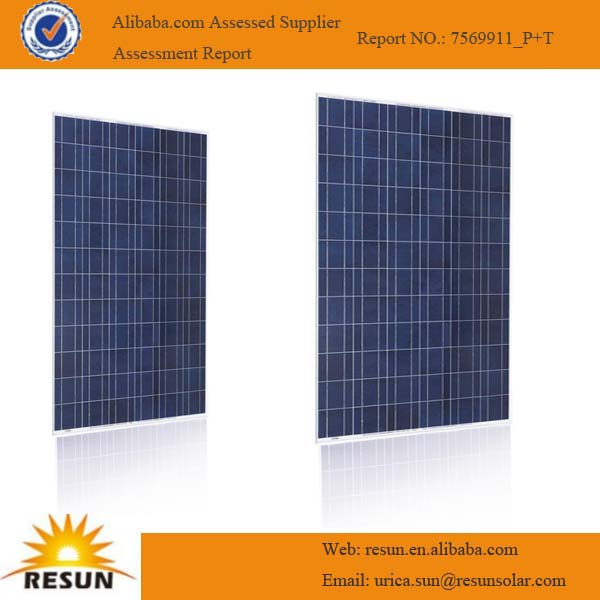

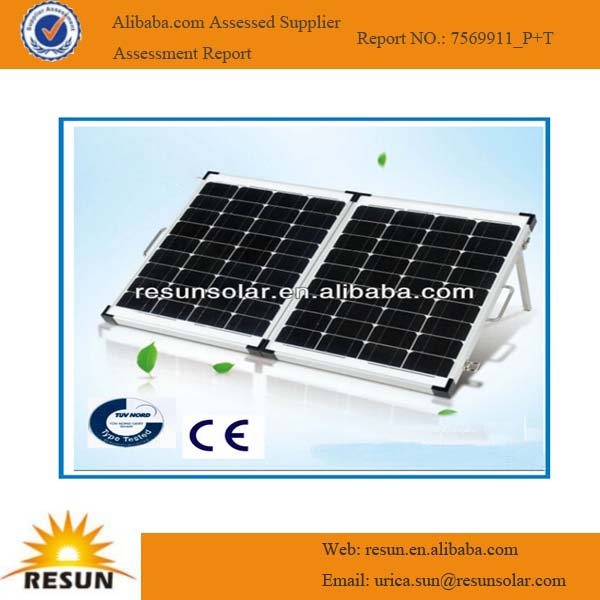

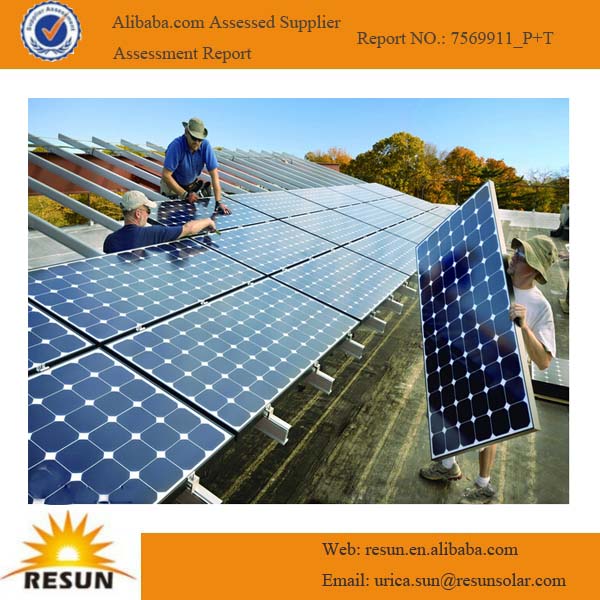

Pictures  show

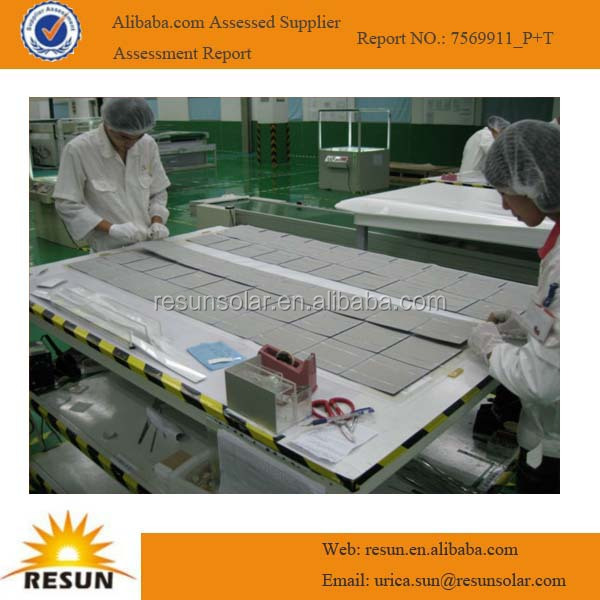

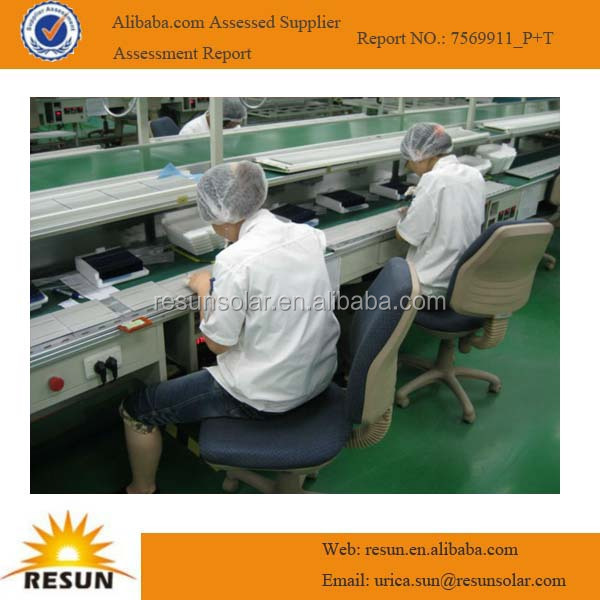

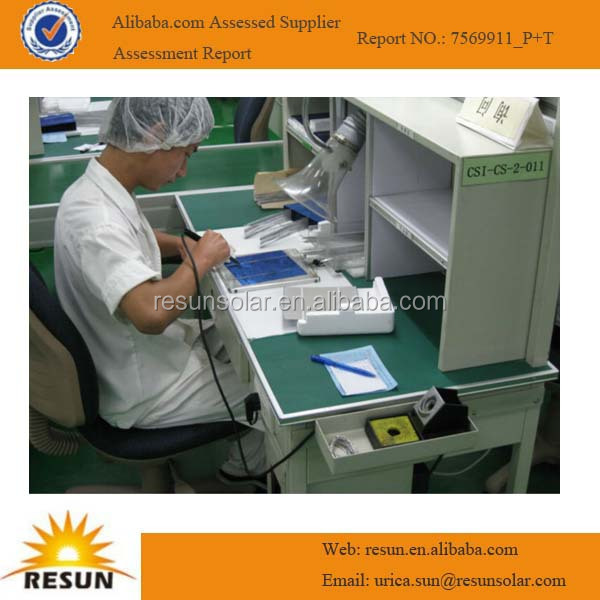

Production flow

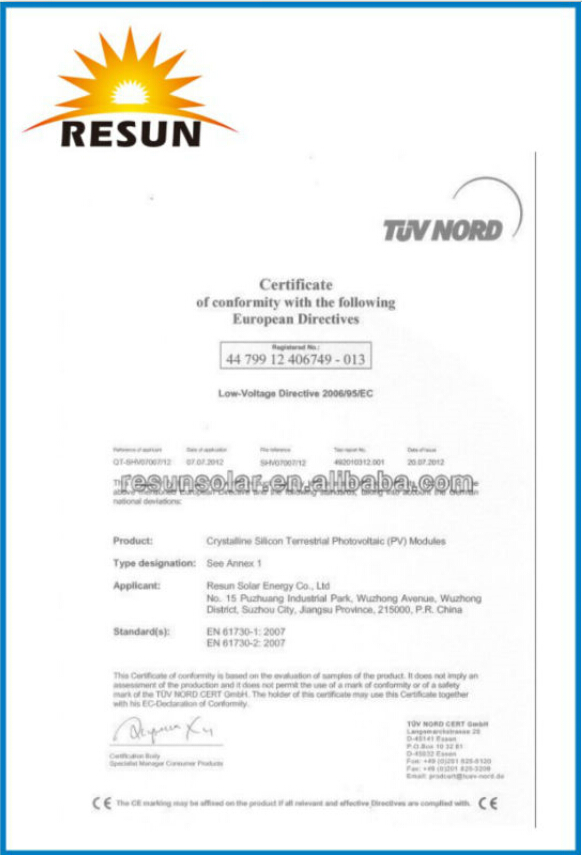

Certification





Our exhibition photos





Solar panel other information:

PAYMENT TERMS

T/T, L/C and Skrill(Moneybookers) are the payment methods we allow at this time.



SHIPPING

Material in stock can be produce (procedure 5-20days) right away after pre-payment confirmation. COSCO Mearsk MSC ship to worldwide for safe shipping, don't worry about package damager or loss. It takes about 15-40 days to worldwide, Please note us your contact details include your phone number for easy contacting from shipping company officer.



ABOUT US

We are manufacturers and wholesalers of solar panels and renewable energy products. Our solar business has been established since 2007. Our engineers are experienced in solar and related accessories, if you buy from us you deal with not just a seller; the whole technical team is behind you and your business. We would like to be your best supplier in China.



IMPORTANT INFORMATION

1. All our solar panels following IEC6125, IEC61730 standard, Have CE, TUV Certifications.

2. The solar cell efficiency is 16%-18.5%. All material certificates by TUV IEC test, meet the solar panel 25 years at outdoor performance.
